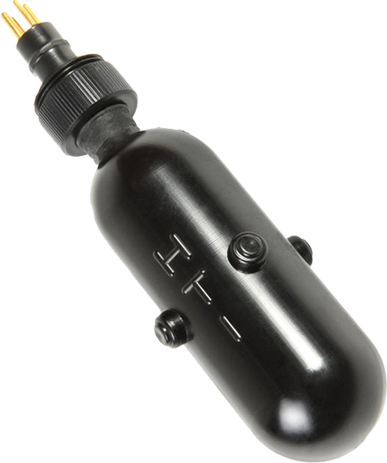

HTI-90-U
A high performance deep water, high sensitivity hydrophone with exceptionally low self-noise. Operating range up to full ocean depth. Used in ASW industry and for noise measurements.
Specifications:
Sensitivity:
without preamp:
-186 dB re: 1V/µPa (50.1 V/Bar)
with preamp:
max — -155 dB re: 1V μPa (1778 V/Bar)
min — -240 dB re: 1V µPa (0.1 V/Bar)
Frequency Response:
2 Hz to 20 kHz
Equivalent Input Self Noise:
RMS from 1 Hz to 1000 Hz:
63 dB re: 1 µPa
0.015 µBar
Spectral:
54 dB re: 1 µPa/√Hz @ 10Hz
35 dB re: 1 µPa/√Hz @ 100Hz
26 dB re: 1 µPa/√Hz @ 1000Hz
Preamplifier Type:
Current, Voltage, or Differential mode
Maximum Operating Depth:
20,000 feet
6,096 meters
Size:
4.0” length X 1.5” dia.
Customization:
HTI hydrophones are highly customizable. Some of these customizations include:
- Pre-Amplifier Gain
- Pre-Amplifier Filter Settings
- Bulkhead Mounting Endcaps
- Cable Type
- Cable Length
Please do not hesitate to contact us about any questions you may have about customizations.
Mechanical Outlines (For Reference Only):
